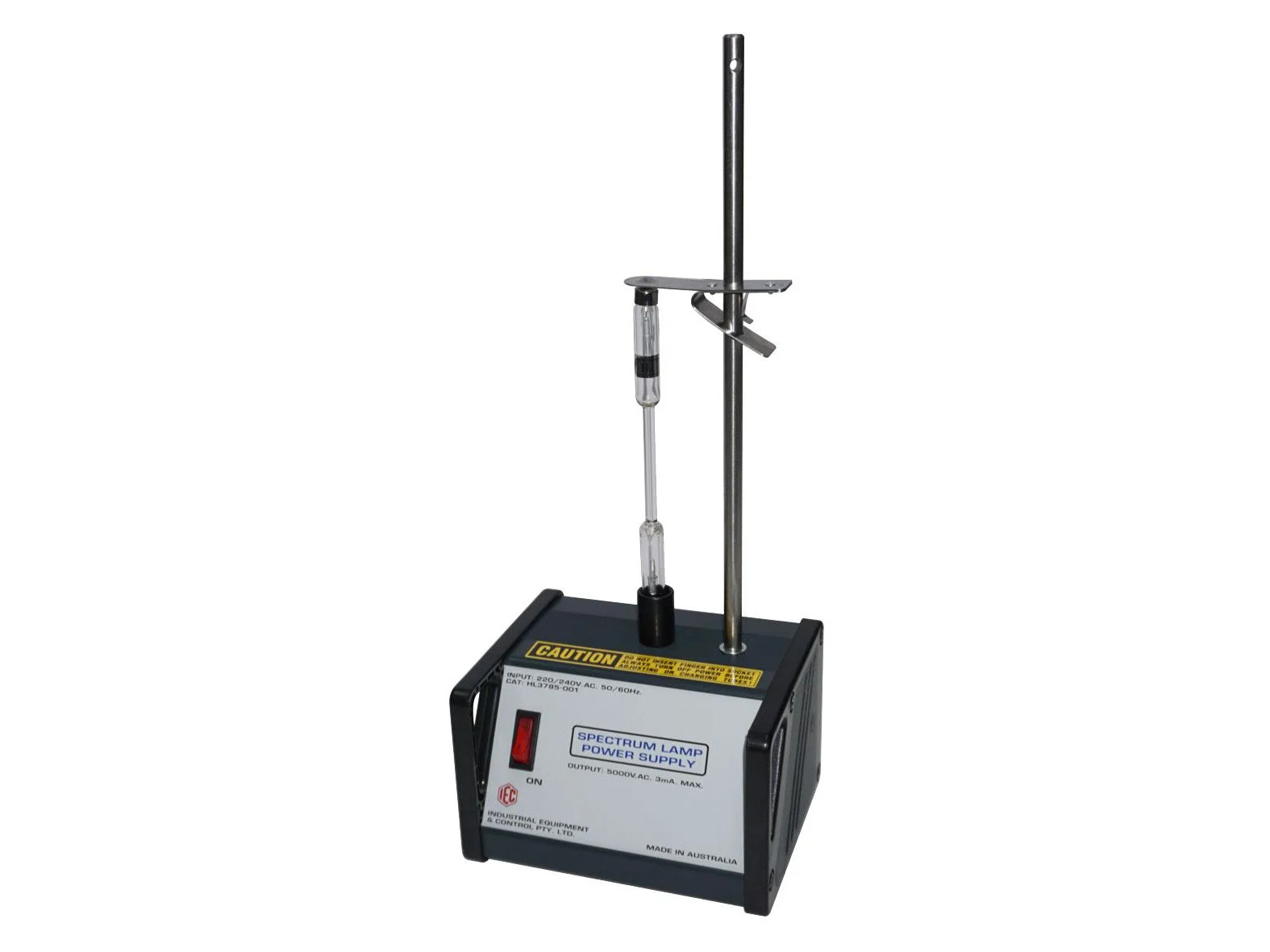

The IEC 'Spectrum Lamp Power Supply' is a self contained unit that runs from 240V.AC mains. (Must not be confused with the Spectral Lamp Power Supply (HL3795-001)). A stainless steel rod and sliding clamp supports various lengths of 'Spectrum Discharge Tube' and a very high voltage is applied. The high voltage terminal is recessed in a deep socket on the top face of the instrument. The mains cable is removable.
Many different spectrum tubes are available containing different gases. These gases emanate various specific wavelengths of light from the thin middle section of the tube.
NOTE:: The hydrogen gas discharge tube requires the highest voltage for correct operation and the IEC power supply provides the correct voltage.
Note: These tubes are often energised by a Rhumkorff spark coil or EHV Power Supply.
For choice of 'Spectrum Discharge Tubes', see PA3786-001 through to PA3786-011.

Instruction Sheet

Spectrum Discharge Tubes available - $48.95 each. See instruction sheet below for tubes and codes.
Instruction Sheet
