The making of clocks in the classroom is very versatile. It provides a lot of scope, as it can be used in almost all subjects and tailored to most age and skill levels. Clock making develops the students’: imagination, research, design, planning and manufacturing skills, incorporating a variety of materials. Students can develop their own design or follow the teachers’ guidelines. An added bonus is that it is a cost effective unit of work which provides a useable end product. There are two main types of Clock Construction:

(1) the CLOCK MOVEMENT, with a choice of hands and numerals

(2) the INSERT CLOCK, where the complete clock is inserted into a hole from the front.

For full pricing and specification information please refer to our Clocks Catalogue.
Click here for a Clock Parts order form.

QUARTZ CLOCK MOVEMENTS

Clock Movements

Each movement is supplied with a rubber washer, brass washer and hexagon nut. ALL other items need to be ordered.

IMPORTANT NOTE: OUR hands fit OUR movements.  We cannot guarantee that our hands will fit other manufacturers' movements.  Our movement shaft dimensions are as follows and should be checked before ordering:
o   the hour hand shaft diameter is 3.14~3.23mm
o   the minute hand shaft diameter is 5.00~5.12mm

Hour and Minute Hands

Hour & minute hands must be ordered separately and are not included in the price of the movement. A second hand is included in the price of the hour & minute hands. See the chart below to find a second hand that suits your hour and minute hands.

Dimensions shown (mm) indicate the length of the hour and minute hand, from the centre of the holes. If the hands are too long, they can be trimmed with scissors. The hands have a protective film which should be peeled off.
NOTES: a. If the order does not specify an item number, H2140 will be supplied; if no colour is specified black will be sent.
b. The hour, minute and second hands are made to fit our clock movements and may not be suitable for other clock movements.

PLEASE NOTE:
1. Items supplied may vary slightly from illustrations.
2. ***H277B and H277G have now been replaced by H278B and H278G, respectively. The hour and minute hand sizes are now 54mm and 76mm respectively. There are still H277Bs in stock.

Second Hands

Included in the price of the hour & minute hands. (See chart above to find a Second Hand that suits your Hour and Minute Hands).
NOTE: For Hour & Minute hands that are supplied with either 57mm or 90mm second hands, please choose from red, black or gold second hands. If no colour is specified on order, red second hands will be supplied.
Additional second hands can also be purchased.

Clock Numerals

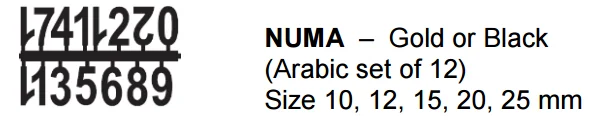

When ordering, state TYPE, FINISH and SIZE: If not specified, NUMA-15mm Black will be supplied. These are plastic numerals, approx. 1-1 ½ mm thick, with self-adhesive and a backing sheet. However, during storage, the adhesive on the back may deteriorate. If so, you can apply one of the commercially available adhesives, such as Selley’s "Supaglue” (Brush-on) or one of the spray on adhesives – eg. Fuller’s "Permanent Bond”.

Clock Numerals & Characters - Limited Editions

ARABIC NUMERALS - WHITE

Code: NUMAW
Set of 12 Arabic numerals. White.
Sizes (approx.): 12mm or 15mm

CHINESE CHARACTERS

Code: NUMC
Set of 12 Chinese characters. Gold. Sizes (approx.): 12mm or 20mm

Click here to download our Numeral Positioning Guide.

RESIN ART CLOCK PROJECT

The RESIN ART CLOCK is a Materials & Technologies Specializations focused project which allows students to create a personalized clock face using coloured Epoxy Resin. Student’s can mix, pour and manipulate the resin into the desired patterns to create a unique clock face, of their own design. This Clock making project is suitable for students in years 8 to 12 in a supervised environment.

More information is available in the Overview.

Two Class packs sizes are available:

For 10 Students
Code: RESART10
This kit contains enough 25cm clock faces, movements, hands, hangers and numerals for 10 clocks. It includes 1.0L of resin and 6 x 10g colour packs.
The colours are: Dark Blue; Light Blue; White; Black; Gold; Green
Price: $290.00

For 20 Students
Code: RESART20
This kit contains enough 25cm clock faces, movements, hands, hangers and numerals for 20 clocks. It includes 2.0L of resin and 8x 10g colour packs.
The colours are: Dark Blue; Light Blue; White; Black; Gold; Purple; Green; Red
Price: $560.00

DECORATIVE CLOCK DIAL CORNERS - LIMITED EDITION

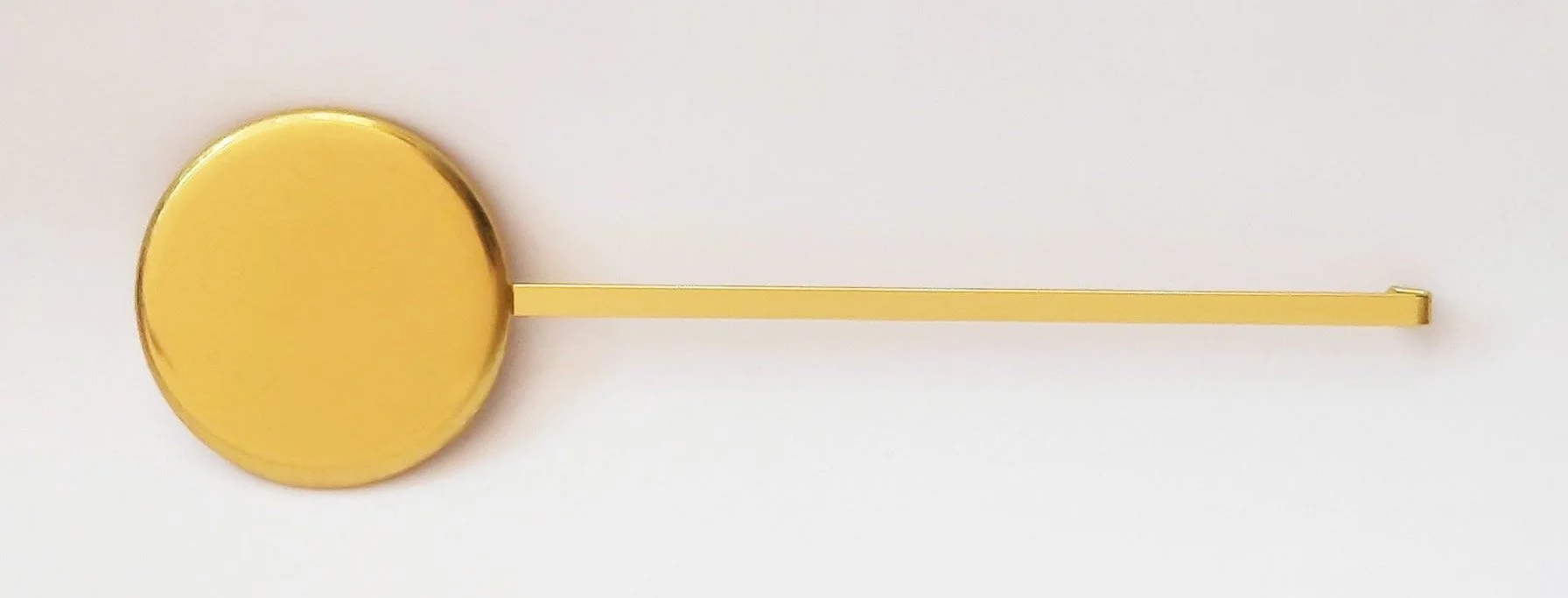

Pendulum

PENDULUM B - Code: PENDUB

Pendulum Rods

Available in 2 different lengths - 170mm (PENDUR) and 270mm (PENDURL). Can be used to create your own bob.
Bobs can be created to match your clock face through 3D printing, plywood, Resin Art or other means.
(Weight limits do apply).

Insert Clocks

Insert clocks are complete clocks – movement, hands, dial face with Roman numerals and front glass with bezel. - For these clocks you need to make a suitable clock housing which allows the clock to be inserted from the front. Notes: - the actual clocks may vary from the picture shown - ICL & ICLL come in a choice of Gold or Chrome colour bezel

Teaching Aids

CODE:  BOOKWOODCL

 “The Complete Guide to Making Wooden Clocks” - John A. Nelson.   This book shows how to make beautiful timber clocks. Each clock has been photographed in colour, has instructions and plans. Suitable for a range of skill levels.
